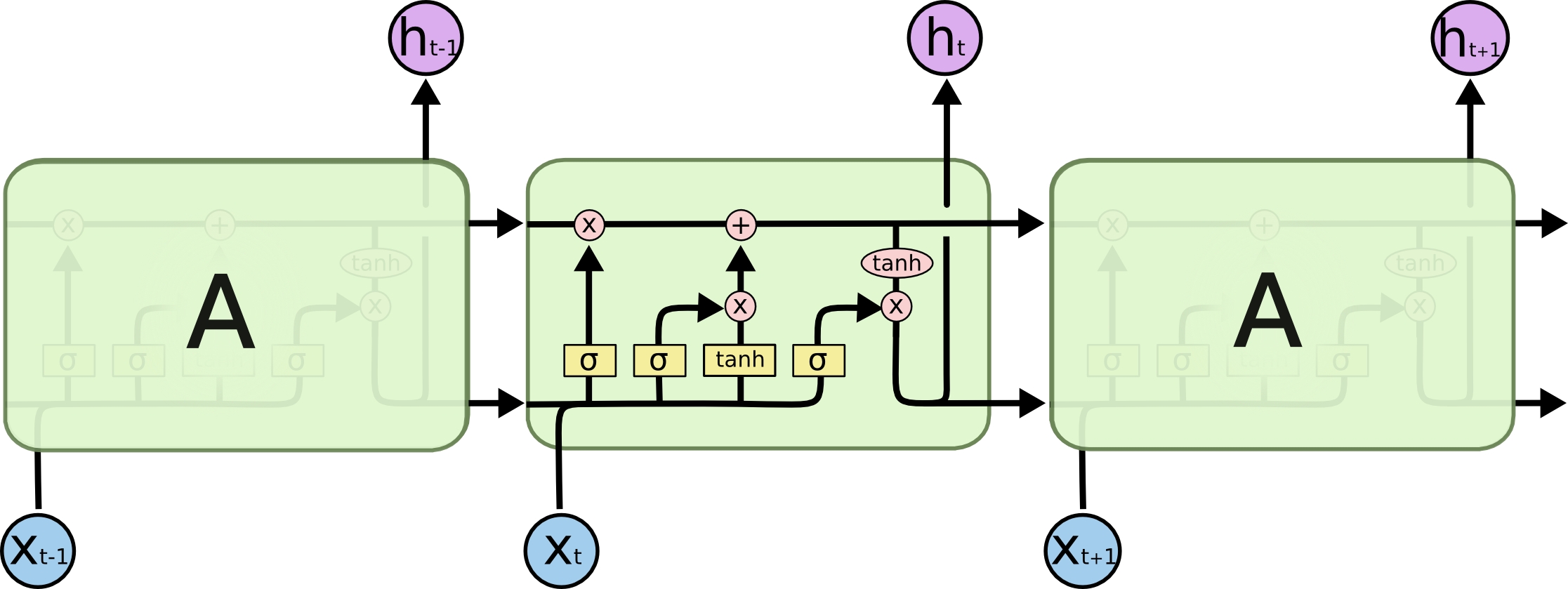

LSTMs are special kind of RNNs, designed explicitly to overcome the long term dependency problem. The repeating modules of neural networks in LSTM have a complex structure compared to that of RNN. The repeating module in LSTM has four interacting layers

  • Memory cell

  • Forget gate

  • Input gate

  • Output gate

alt text

  • Memory/Cell-state - This is represented as the horizontal layer running through the top of the diagram. It has some linear transformations such as pointwise multiplication and addition

  • Gates - These are used to optionally let information through using sigmoid neural network layers, which outputs in either 0 or 1, representing the information which we want to leave or the information we want to persist.

Now lets familiarize with the notations

alt text
